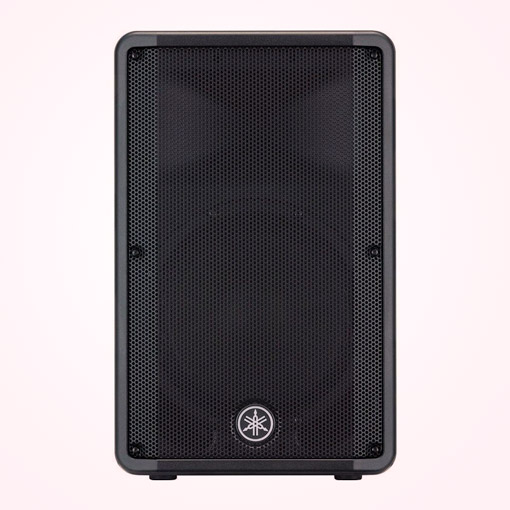

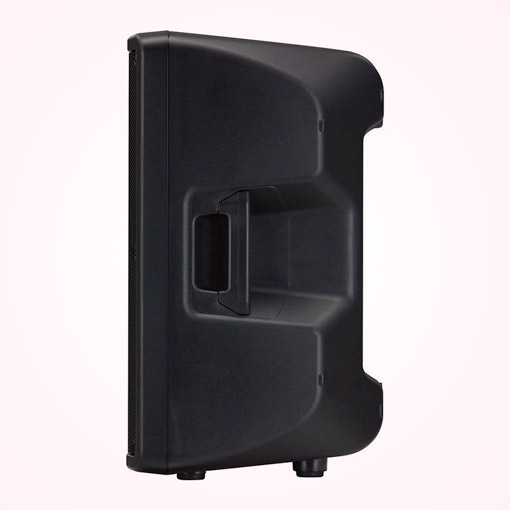

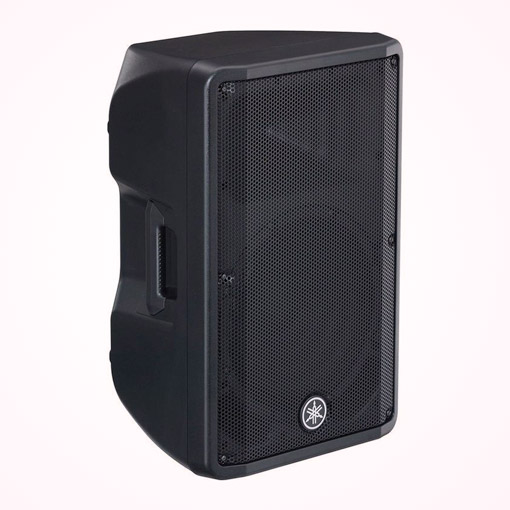

Yamaha DBR12

  • Total Power: 1000W
  • Frequency Range: 52Hz-20kHz (-10 dB)
  • Crossover Frequency: 2.1kHz
  • Maximum Peak SPL: 131dB
  • Horizontal Coverage Angle: 90 Degrees

 0,00

Açıklama

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR12- 12″ 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 12″ woofer and a 1.4″ high-frequency driver and provides a maximum output of 131 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4″, XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR12 is portable and can be easily transported.

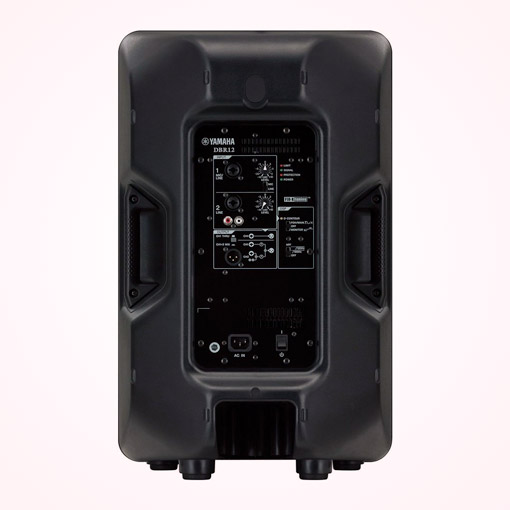

DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

  • FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response

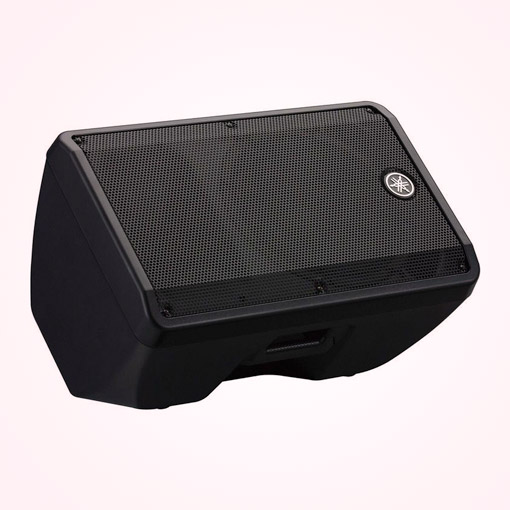

  • D-Contour optimizes the DBR12 for main speaker or floor monitor use
  • Onboard mixer lets you select either a direct output or a mixed output
  • Comprehensive inputs for mixer, musical instrument, or media players
  • Amplifier and power supply design provides powerful output from a compact speaker
  • DSP-controlled protection functionality promotes optimum reliability
  • Powered; Yes
  • Power Configuration; Bi-amped
  • LF Driver Size: 12″
  • HF Driver Size: 1.4″
  • LF Driver Power Amp: 800W
  • HF Driver Power Amp 200W
  • Total Power: 1000W
  • Frequency Range: 52Hz-20kHz (-10 dB)
  • Crossover Frequency: 2.1kHz
  • Maximum Peak SPL: 131dB
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees
  • Enclosure Material: Plastic
  • Mounting Options: Pole, Floor Wedge
  • Inputs: 2 x XLR/TRS Combo, 1 x stereo RCA
  • Outputs: 1 x XLR
  • Height: 23.7″
  • Width: 14.8″
  • Depth: 13.7″
  • Weight: 34.8 lbs.
